SDV-1611H / SDV-2011H
| MODEL | SDV-1611H | SDV-2011H |
| X AXIS TRAVEL | 1600 mm | 2040 mm |
| Y AXIS TRAVEL | 1100 mm | 1100 mm |
| Z AXIS TRAVEL | 760 mm | 760 mm |
| TABLE DIMENSION | 1600x1000 mm | 2000x1000 mm |
| T-SLOT | 22 (24,28) mm | 22 (24,28) mm |
| MAXIMUM TABLE WORKPIECE LOAD CAPACITY | 3000 Kg | 3500 Kg |
| DISTANCE BETWEEN TWO COLUMNS | 1200 mm | 1200 mm |
| DISTANCE BETWEEN SPINDLE NOSE TO TABLE | 250 ~ 1010 mm | 250 ~ 1010 mm |
| SPINDLE TAPER | ISO NO.50 (40) BT-50, CAT-50, DIN 69871 (BT-40, CAT-40), HSK-A63, HSK-A100 | ISO NO.50 (40) BT-50, CAT-50, DIN 69871 (BT-40, CAT-40), HSK-A63, HSK-A100 |
| SPINDLE SPEED | 20 ~ 4000 (30 ~ 6000) (100 ~ 10000) (80 ~ 80000) (12000 ~ 24000) rpm | 20 ~ 4000 (30 ~ 6000) (100 ~ 10000) (80 ~ 80000) (12000 ~ 24000) rpm |
| MOTOR POWER | 30 / 25 (35 / 30) HP | 30 / 25 (35 / 30) HP |
| X,Y,Z RAPID FEEDRATE CAPACITY | 15000 (20000) mm/min | 15000 (20000) mm/min |
| Z AXIS RAPID FEEDRATE CAPACITY | 12000 (15000) mm/min | 12000 (15000) mm/min |
| CUTTING FEEDRATE | 1 ~ 5000 (1 ~ 8000) mm/min | 1 ~ 5000 (1 ~ 8000) mm/min |
| TOOL CAPACITY | (24 / 32 / 40) pcs | (24 / 32 / 40) pcs |
| MAX TOOL DIAMETER | Ø125 / Ø210 mm | Ø125 / Ø210 mm |
| MAX TOOL LENGTH | 350 mm | 350 mm |
| MAX TOOL WEIGHT | (18 / 20) Kgs | (18 / 20) Kgs |
| TOOL TYPE | (ABS, Random Bi) | (ABS, Random Bi) |
| TOOL SWITCH DURATION | 8 (4.5) sec | 8 (4.5) sec |
| POWER REQUIREMENT | 40 (45) kVA | 40 (45) kVA |
| REQUIRED SPACE | 7200x4800 mm | 8000x4000 mm |
| MACHINE HEIGHT | 4355 mm | 4355 mm |
| MACHINE WEIGHT | 20 TON | 20.5 TON |
| CONTROL SYSTEM | Fanuc, Meldas, Siemens, Heidenhain Series etc. | Fanuc, Meldas, Siemens, Heidenhain Series etc. |
| POSITIONING | JIS B6338 0.01/300, VDI 3441 P0.025 mm | JIS B6338 0.01/300, VDI 3441 P0.025 mm |
| REPEATABILITY | ±0.003 mm | ±0.003 mm |
- LUBRICATION SYSTEM
- GLAZED WINDOW-TYPE SPLASH GUARD
- SCREW-TYPE CHIP CONVEYOR
- LINK-TYPE CHIP CONVEYOR
- COOLANT EQUIPMENT
- SPINDLE OIL COOLER
- Z-AXIS HYDRAULIC BALANCE UNIT
- PNEUMATIC UNIT
- AIR BLOW FOR CHIP ( BY M-CODE )
- WORK LAMP
- AUTO POWER-OFF
- M.P.G
- PROGRAM END&ALARM LAMP
- RS-232 INTERFACE
- LEVELING BLOCK AND BOLTS
- TOOL KIT
- MAINTENANCE AND OPERATION MANUAL
- CONTROLLER OPERATION MANUAL AND ELECTRICAL CIRCUIT DIAGRAM
- INSPECTION LIST
- AUXILIARY TABLE
- NC(ROTARY TABLE,INDEX TABLE)
- 20、32、40、60、ATC MAGAZINE CAPAC
- ITY
- TOOL PRESETTER
- AUTO TOOL LENGTH DIAMETER MEASUREMENT
- AUTO TOUCH PROBE SYSYTEM
- LINEAR SCALE FEEDBACK
- COOLANT THROUGH SPINDLE SYSTEM
- OIL HOLE TOOL SHANK DEVICE
- COOLANT AUTO AIR MIST DEVICE
- COOLANT NOZZLE ANGLE REMOTE CONTROL
- MANUAL 45° , 90° ANGLE HEAD、UNIVERSAL HEAD、EXTENSION HEAD； MANUAL SET-UP AUTO DEVIDED 5° POSITION (RIGHT ANGLE HEAD, SWING DEVIDED ANGLE HEAD, 45° ANGLE HEAD)
- SPINDLE THERMAL COMPENSATION
- AVALIABLE WITH DIFFERENT SPINDLE SPEC & RPM
- MANUAL FULL SPLASH GUARD
-
SIGMA CNC Patent - The spindle ram and Z-axis are designed with 4-linear guideways (Roller type guideway, width 45mm) and a box-way construction. During heavy cutting vibrations are eliminated, and during fine cutting inert does not occur, resulting in higher surface accuracy.
-
SIGMA CNC Patent – Y-axis configured by 3-linear guideways (Roller type guideway, width 65mm) for horizontal and vertical directions that offer greater stability and rigidity for the machine.
-
All three axes(X, Y, Z) are Roller type linear guideways.
-
Direct Drive Spindle (Optional)
(BT-50, 10000rpm)
-
Direct Drive Spindle with 2-steps Planetary Gearbox (Optional)
(BT-50, 6000/8000/10000rpm)
-
Built-in Motor Spindle (Optional) (BT-50 / HSK-A100, 10000rpm)
(BT-40 / HSK-A63, 18000rpm)
(HSK-A63, 12000~28000rpm inverter Spindle)
-

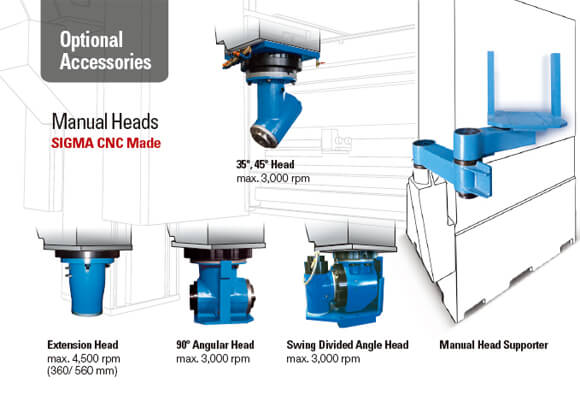

Heads by Manual Change (Optional)
-
Auto Attachment Heads Change System (Optional)
