SDV-1611 / SDV-2011
| MODEL | SDV-1611 | SDV-2011 |
| X AXIS TRAVEL | 1600 mm | 2040 mm |
| Y AXIS TRAVEL | 1100 mm | 1100 mm |
| Z AXIS TRAVEL | 760 mm | 760 mm |
| TABLE DIMENSION | 1600x1000 mm | 2000x1000 mm |
| T-SLOT | 22 (24,28) mm | 22 (24,28) mm |
| MAXIMUM TABLE WORKPIECE LOAD CAPACITY | 3000 Kg | 3500 Kg |
| DISTANCE BETWEEN TWO COLUMNS | 1200 mm | 1200 mm |
| DISTANCE BETWEEN SPINDLE NOSE TO TABLE | 250 ~ 1,010 (250 ~ 1.250) / 355~ 1.115 (355~ 1.355) mm | 250 ~ 1,010 (250 ~ 1.250) / 355~ 1.115 (355~ 1.355) mm |
| SPINDLE TAPER | ISO NO.50 (40) BT-50, CAT-50, DIN 69871 (BT-40, CAT-40) | ISO NO.50 (40) BT-50, CAT-50, DIN 69871 (BT-40, CAT-40) |
| SPINDLE SPEED | 20~ 4.000 (30~ 6.000) (100~ 10.000) (80~ 8.000) rpm | 20~ 4.000 (30~ 6.000) (100~ 10.000) (80~ 8.000) rpm |
| MOTOR POWER | 25 / 20 (30 / 25 ) HP | 25 / 20 (30 / 25 ) HP |
| X,Y,Z RAPID FEEDRATE | 15.000 mm/min | 15.000 mm/min |
| Z AXIS RAPID FEEDRATE CAPACITY | 12.000 (15.000)mm/min | 12.000 (15.000)mm/min |
| CUTTING FEEDRATE | 1~ 5.000 (1~8000)mm/min | 1~ 5.000 (1~8000)mm/min |
| TOOL CAPACITY | (24 / 32 / 40) pcs | (24 / 32 / 40) pcs |
| MAX TOOL DIAMETER | Ø125 / Ø210 mm | Ø125 / Ø210 mm |
| MAX TOOL LENGTH | 350 mm | 350 mm |
| MAX TOOL WEIGHT | 18/20 Kg | 18/20 Kg |
| TOOL TYPE | (ABS, Random Bi) | (ABS, Random Bi) |
| TOOL SWITCH DURATION | 8 (4,5) sec | 8 (4,5) sec |
| POWER REQUIREMENT | 40 (45) kVA | 40 (45) kVA |
| REQUIRED SPACE | 7200x4800 mm | 8000x4000 mm |
| MACHINE HEIGHT | 4.350 mm | 4.350 mm |
| MACHINE WEIGHT | 18.5 TON | 19 TON |
| CONTROL SYSTEM | Fanuc, Meldas, Siemens, Heidenhain Series etc. | Fanuc, Meldas, Siemens, Heidenhain Series etc. |
| POSITIONING | JIS B6338 0.01/300, VDI 3441 P0.025 mm | JIS B6338 0.01/300, VDI 3441 P0.025 mm |
| REPEATABILITY | ± 0.003 mm | ± 0.003 mm |
- LUBRICATION SYSTEM
- GLAZED WINDOW-TYPE SPLASH GUARD
- SCREW-TYPE CHIP CONVEYOR
- LINK-TYPE CHIP CONVEYOR
- COOLANT EQUIPMENT
- SPINDLE OIL COOLER
- Z-AXIS HYDRAULIC BALANCE UNIT
- PNEUMATIC UNIT
- AIR BLOW FOR CHIP ( BY M-CODE )
- WORK LAMP
- AUTO POWER-OFF
- M.P.G
- PROGRAM END&ALARM LAMP
- RS-232 INTERFACE
- LEVELING BLOCK AND BOLTS
- TOOL KIT
- MAINTENANCE AND OPERATION MANUAL
- INSPECTION LIST
- AUXILIARY TABLE
- NC(ROTARY TABLE,INDEX TABLE)
- 16、20、32、40、60、ATC MAGAZINE CAPACITY
- TOOL PRESETTER
- AUTO TOOL LENGTH DIAMETER MEASUREMENT
- AUTO TOUCH PROBE SYSYTEM
- LINEAR SCALE FEEDBACK
- COOLANT THROUGH SPINDLE SYSTEM
- OIL HOLE TOOL SHANK DEVICE
- COOLANT AUTO AIR MIST DEVICE
- COOLANT NOZZLE ANGLE REMOTE CONTROL
- MANUAL 45° , 90° ANGLE HEAD、UNIVERSAL HEAD 、EXTENSION HEAD MANUAL SET-UP AUTO DEVIDED 5° POSITION (RIGHT ANGLE HEAD, SWING DEVIDED ANGLE HEAD, 45° ANGLE HEAD)
- SPINDLE THERMAL COMPENSATION
- AVALIABLE WITH DIFFERENT SPINDLE SPEC & RPM
-
The Ram motion of Z-axis is supported by 2 Linear Guideways.
Z-axis linear guideways width 85mm. THK-SRW series.
Spindle center to Z-axis linear guideways distance only 60mm.
-
Y-axis linear guideways are configured for horizontal and vertical directions.
-
All three axes(X, Y, Z) are Roller type linear guideways.
-
Gears Drive Spindle (Standard).
SIGMA CNC – Self-made 2-steps Gearbox.
BT-50, Max. 6000rpm.
-

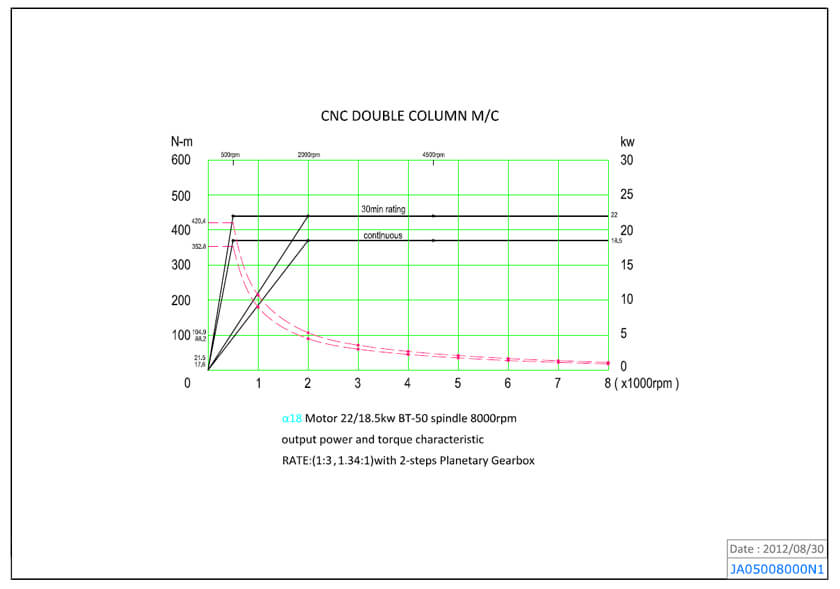

Belt Drive Spindle (Optional).
With 2-steps Planetary Gearbox.
BT-50, Max. 4000rpm / 6000rpm /8000 rpm.
-
Heads by Manual Change (Optional).
