CNC LATHE

MODEL	G-65T
Machining range
Controlled axis number	3 (X, Z, B)
Swing over bed	520 mm
Swing over saddle	350 mm
Standard machining diameter	290 mm
Standard bar capacity	65 mm
Maximum machining diameter	380 mm
Distance between centers	650 mm
Feed axis
X-axis travel	190 + 50 mm ( Standard tool holder)
Z-axis travel	610 mm
Rapid traverse	Standard: 24 / 24 / 24 mm/min Max.: 24 / 36 / 30 mm/min ( Mitsubishi) Max.: 32 / 48 / 40 mm/min ( Fanuc)
Spindle
Spindle nose (chuck)	A2-8 (10”)
Max. spindle speed	3500 rpm
Bearing bore	130 mm
Spindle bore	76 mm
Spindle motor
Power (Cont / 30 min )	11 / 15 KW
Continuous rated speed	6000 / 7000 rpm (Mitsubishi / Fanuc)
Continuous rated torque	70 N-m (Kgf-cm)
Axis motor
Axis	2.2 / 2.5 KW (Mitsubishi / Fanuc)
Tool turret
Number of tool positions	12
OD tool shank	25x25 mm
boring bar	∮40 mm
Tail-stock
Tail-stock diameter	110 mm
Tail-stock travel	450 mm
Tail-stock spindle travel	100 mm
Tail-stock taper	MT#4
Others
Hydraulic motor	1.5 KW
Coolant motor	0.75 KW
Coolant tank capacity	100 L
Equipment capacity	32 KVA ( including bar feeder, etc., 3kW)
Power required	≧28 KVA

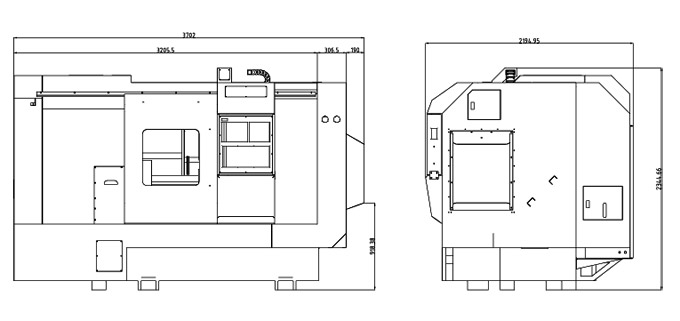

Machine size (WxHxD)	3702×2345×2195 mm
Net weight	5400 Kg

ITEM

1. Tool kit (containing the tools for set-up, adjustment, and leveling bolts, blocks, etc.)

2. Automatic lubrication system

3. Work lamp

4. 3-color warning lamp

5. Coolant pump, pressure sensor.

6. Hydraulic collet chuck

7. Bar feeder interface

8. Heat exchanger for electrical cabinet

9. Tool holders

ITEM

1. Magazine type bar feeder

2. Hydraulic jaw- type chuck

3. Soft jaw or hard jaw

4. Chip conveyor

5. Foot switch for chuck control

6. Tool setter (manual or automatic)

7. Parts catcher

8. High pressure coolant pump

9. Automatic pneumatic door

10. Air blow system

11. Oil mist collector

12. Air conditioner for electrical cabinet
